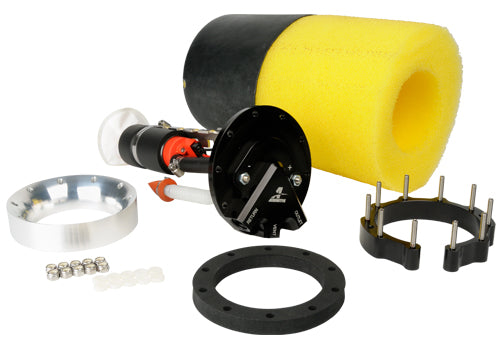

Aeromotive Phantom 340 Stealth Fuel System FP-18688

•340 Stealth Fuel Pump
• Supports up to
 - 700 HP EFI - Forced Induction
 - 850 HP EFI - Naturally Aspirated
 - 850 HP Carbureted - Forced Induction
 - 1000 HP Carbureted - Naturally Aspirated
• Black anodized hanger assembly
• (3) ORB-06 Ports – Supply, Return, Vent
• Fuel resistant baffle/basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter
• Modular design can be cut to height to fit almost any fuel tank
• EFI or Carbureted
• Turbine pump mechanism increases durability.
• Must be used with a return style system
• In-tank use only

If you are considering a switch to an EFI or swapping in a late model motor? This recent trend in hot rodding has had a major common issue: fuel delivery. A common question we hear is "what do I do for a tank?". Until recently, there have only been three options. One option is welding a sump to your tank. Or you could go with a fuel cell or pay for a custom tank. We are happy to say that Fuel Safe has opened up new possibilities. Aeromotive’s Phantom Fuel System offers the option to install a high-performance fuel pump inside virtually any fuel tank, including your factory tank.

First, cut a hole in your tank and measure the depth. Next, cut the pump hanger bracket to length and your baffle/basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That is all there is to it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted and its whisper quiet.

You no longer need to weld sumps or use up trunk space with fuel cells. No more fuel handling issues like vapor-lock or fuel slosh. The Phantom system's internal baffle/basket keeps fuel slosh under control. In addition, it keeps the fuel pump submerged in fuel, even at low fuel levels and in high-performance scenarios. One of the best parts of the Phantom system is that it is totally universal. The system will fit virtually any tank from 5.5” deep to 11” deep, plastic, steel, aluminum, corrugated or smooth. The Phantom System provides you everything you need to fuel your vehicle.
