Enduro® Complete QSST Aluminum Fuel Cell - 5 Gallon, ED105-QSST
-
5 Year Warranty
-
Made In USA
-
FIA-FT3 Certified
Product Features
Description
Our FIA-FT3 certified line of Enduro Cell® fuel cells are designed to be installed in a wide variety of vehicles. The Enduro Cell® fuel cells are compatible with all hydrocarbon fuels, E85 blends, and alcohol (alcohol use requires the removal of foam baffling). The Enduro Cell® line of fuel cells from Fuel Safe® delivers excellent performance at a great price. This Fuel Cell also includes the Fuelab QSST® (Quick Service Surge Tank). The Fuelab QSST quick service surge tank is one of the most effective products on the market for mitigating fuel starvation issues. Unlike other manufacturers versions of surge tank style fill plates, the Fuelab QSST® allows racers to service their internal fuel pumps within just minutes, not hours.
The Enduro® QSST fuel cell includes:
- FIA-FT3 Certified Enduro® bladder
- Safety foam baffling
- .063" aluminum can with a top-external mounting flange
- Fuelab QSST® (Quick Service Surge Tank)
***NOTE***

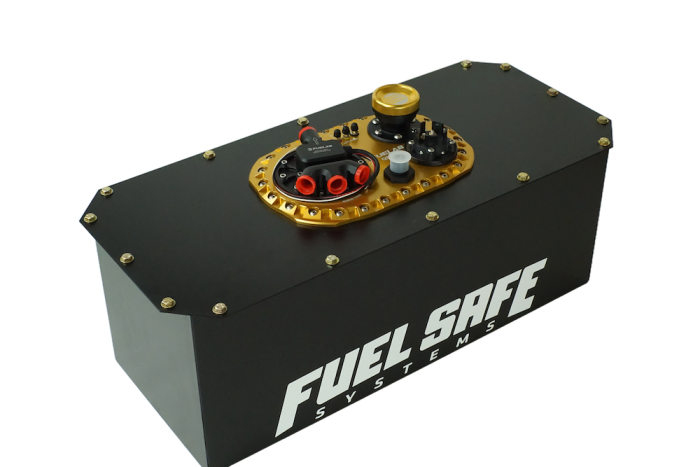

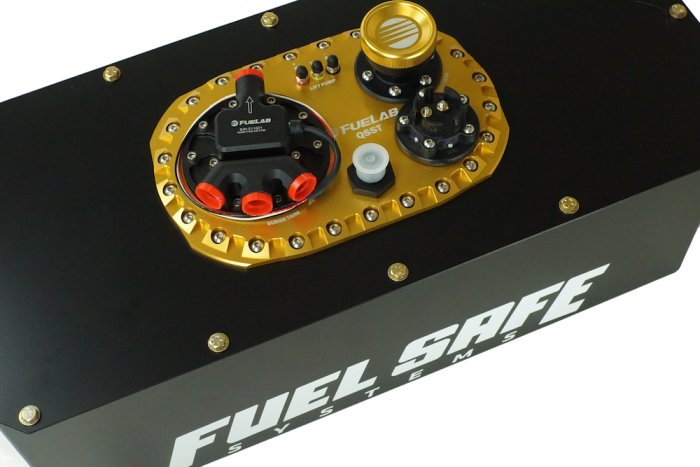

Images in this gallery show the Powder Coat option in semi-gloss black.
QSST FEATURES:
- Quick Service Surge Tank for fast pump service
- Provides protection against fuel slosh from standard fuel cell pump hangers
- Fits the Industry Standard 24 Bolt fill plate bolt pattern
- Gasoline, Ethanol (E85), and Methanol compatible
- Rollover flap protection
- Brushed or Brushless Pump Options
- Fuel Tank Vent with Rollover Protection
- Gaskets and Hardware Included
- Optional Remote Fuel Fill
- Optional Fuel Level Sensor
- Fuelab QSST Limited Lifetime Warranty!

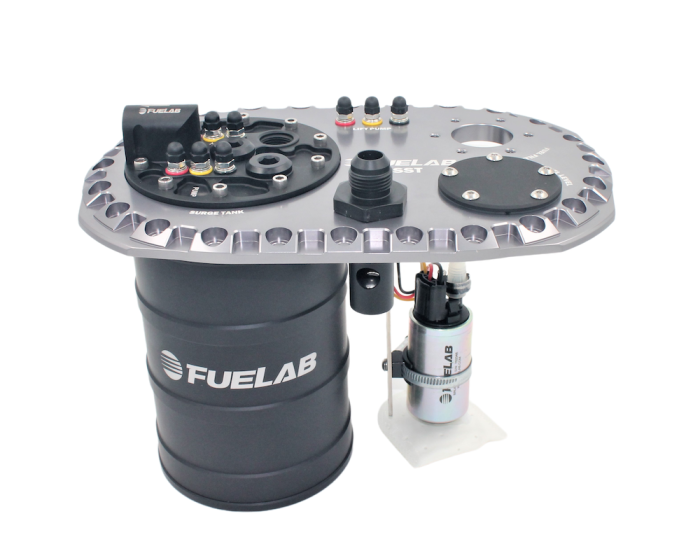

The QSST (Quick Service Surge Tank) is exactly that. You can service your Surge Tank Pumps in minutes. With only 10 bolts on top, you can pull the Surge Tank Pump Hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24-bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. This unit is compatible with Brushed and Brushless pumps for both the Lift Pump and the Surge Tank Pump(s), or a combination of the two using the same Base Plate. The base plate comes standard in two enticing anodized colors, Titanium and Gold.
Minutes, Not Hours
Meet the Fuelab Quick Service Surge Tank. Only 10 top bolts for quick servicing!
See the Difference
What's included: FIA-FT3 Certified Enduro® bladder, Safety foam baffling, .063" aluminum can with a top-external mounting flange, Fuelab QSST®
Product Details: Part Numbers, Capacities, Dimensions
All stated Capacities are Dimensional
ED105-QSST
Dimensional Capacity
5 Gallons
Usable Capacity
4.8 Gallons
Dimensions
13.625" x 13.625" x 8.375"
ED108B-QSST
Dimensional Capacity
8 Gallons
Usable Capacity
6.5 Gallons
Dimensions
20.125" x 12.125" x 8.625"
ED110-QSST
Dimensional Capacity
10 Gallons
Usable Capacity
9.4 Gallons
Dimensions
25.625" x 10.125" x 10.125"
ED112-QSST
Dimensional Capacity
12 Gallons
Usable Capacity
11.3 Gallons
Dimensions
20.75" x 17.875" x 9.5"
ED115-QSST
Dimensional Capacity
15 Gallons
Usable Capacity
14.1 Gallons
Dimensions
26" x 17.875" x 9.5"
ED118A-QSST
Dimensional Capacity
18 Gallons
Usable Capacity
14.8 Gallons
Dimensions
28" x 17.125" x 9.875"
ED122A-QSST
ED122B-QSST
Dimensional Capacity
22 Gallons
Usable Capacity
19.3 Gallons
Dimensions
25.5" x 17.125" x 13.75"
FAQ
Dimensional vs Usable Capacity?
- Dimensional capacity is based on the external container dimensions.
- Usable capacity may vary depending on the internal components, bladder type, and scavenge systems.
Does this Fuel Cell include Certifications?
Yes, our ED-QSST series are all FIA-FT3 certified.
How long will it take to get my order?
Lead times vary based on product / fuel cell capacities. Refer to the lead times noted for each product.
Shipping times may vary on your location.
Do you ship overseas?
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
