Pro Cell®, Complete Fuel Cell 12-Gallon, PC112
-
5 Year Warranty
-
Made In USA
-
FIA-FT3 Certified
Product Features
Description
The Pro Cell’s® unique, seamless coating design produces unmatched durability and safety in a racing fuel cell. Pro Cells® are designed specifically for use with hydrocarbon fuels but have been successfully used by top teams running ethanol blends up to and including E85. The Fuel Safe Pro Cell® is the fuel cell of choice for top off road, road race, and circle track racers around the globe.
All racing fuel cells are configurable to meet the needs of your specific application.

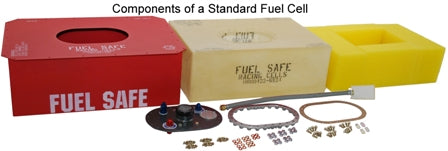

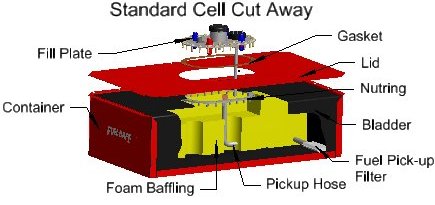

Each complete Pro Cell® racing cell includes:
- Ultra tough, FIA-FT3 certified Pro Cell® bladder
- Powder coated 20 gauge steel container with external mounting flange
- Full safety foam baffling, minimizes fuel slosh and the potential for an explosion.
- SF6X10ML fill plate comes standard with a -6 pickup (plumbed to the center rear of the cell), -6 return, -8 rollover vent valve, high quality threaded aluminum fill cap and a sending unit provision.
- Aircraft grade nut ring and gasket
- Fuel pickup assembly, factory installed
- Limited 5 year manufacturer warranty
Recommended upgrades: Holley HydraMat, surge tank, or a sending unit.
See the Difference
What's included: Ultra tough, FIA-FT3 certified Pro Cell® bladder, Powder coated 20 gauge steel container with external mounting flange, Foam baffling, SF6X10ML fill plate comes standard with a -6 pickup, Aircraft grade nutring and gasket
Product Details: Part Numbers, Capacities, Dimensions
All stated Capacities are Dimensional
PC108A
PC108B
PC110
PC112
PC115
PC115-06
PC118A
PC118B
PC118C
PC122B
FAQ
Dimensional vs Usable Capacity?
- Dimensional capacity is based on the external container dimensions.
- Usable capacity may vary depending on the internal components, bladder type, and scavenge systems.
How long will it take to get my orders?
Lead times vary based on product / fuel cell capacities. Refer to the lead times noted for each product.
Shipping times may vary on your location.
What is the average useful life of a Fuel Cell Bladder?
Safety fuel cells are out of sight so they tend to be forgotten. Fuel cells have a finite life span. The environment can greatly affect the cell's longevity. The typical lifespan of a fuel cell is between 8 and 10 years, although all sanctioning bodies limit use to 5 years from the date of manufacture. By following a few simple guidelines and inspecting your fuel cell on a regular basis, you can ensure that the performance and safety of your vehicle will remain intact.
- Avoid fuel additives
- Do not store fuel in the cell for long periods
- Do not expose the cell to harsh chemicals
- Do not use solvents on the cell
- Store your bladder in a cool dry place, out of direct sunlight
- Inspect the interior and exterior of your cell once a year
- Torque fill plate bolts to 75-80 inch-pounds for synthetic cork gaskets, and 55 inch-pounds for viton gaskets
What is the useful life of Safety Foam Baffling?
With pump gas (15% Ethanol or less), the average use life is 3-5 years.
With high ethanol blends, such as e85 (85% Ethanol) - you can expect 1-2 years of useful life.
Do NOT exceed 85% Ethanol Fuel Blends.
