Pro Cell® QSST Complete Aluminum Fuel Cell - 5 Gallon, PC105-QSST
Description
Our FIA-FT3 certified line of Pro Cell® fuel cells are designed to be installed in a wide variety of vehicles. The Pro Cell® fuel cells are compatible with all hydrocarbon fuels, E85 blends, and alcohol (alcohol use requires the removal of foam baffling). The Pro Cell® line of fuel cells from Fuel Safe® delivers excellent performance at a great price. This Fuel Cell also includes the Fuelab QSST® (Quick Service Surge Tank). The Fuelab QSST quick service surge tank is one of the most effective products on the market for mitigating fuel starvation issues. Unlike other manufacturers versions of surge tank style fill plates, the Fuelab QSST® allows racers to service their internal fuel pumps within just minutes, not hours.
The PC105-QSST fuel cell includes:
- FIA-FT3 Certified Pro Cell® bladder
- Safety foam baffling
- .063" aluminum can with a top-external mounting flange
- Fuelab QSST® (Quick Service Surge Tank)
***NOTE***

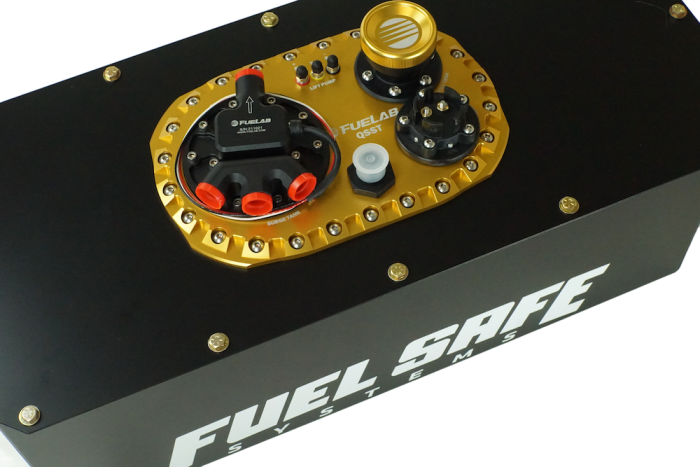

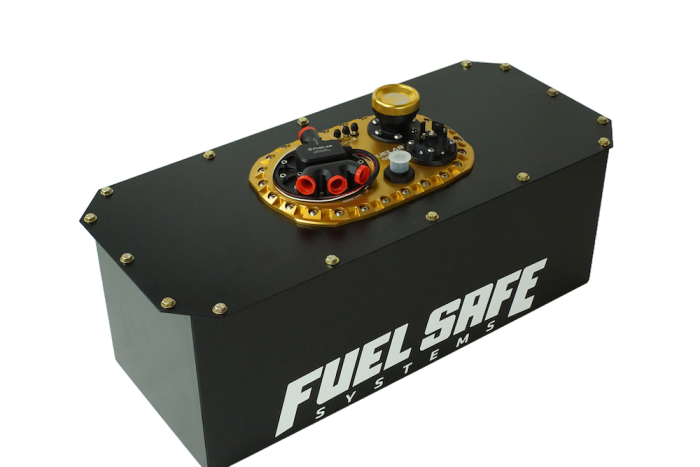

Images in this gallery show the Powder Coat option in semi-gloss black.
|
Part No.
|
Dimensional Capacity
|
Usable Capacity
|
Dims
|
|
PC105-QSST |
5 gal. | 4.8 gal. | 13.625" x 13.625" x 8.375" |
|
PC108B-QSST |
8 gal. | 6.5 gal | 20.125" x 12.125" x 8.625" |
|
PC110-QSST |
10 gal. | 9.4 gal. | 25.625" x 10.125" x 10.125" |
|
PC112-QSST |
12 gal. | 11.3 gal. | 20.75" x 17.875" x 9.5" |
|
PC115-QSST |
15 gal | 14.1 gal. | 26" x 17.875" x 9.5" |
| PC118-QSST | 18 gal. | 14.8 gal. | 28" x 17.125" x 9.875" |
|
PC122A-QSST |
22 gal. | 15.8 gal | 34" x 18" x 9.5" |
|
PC122B-QSST |
22 gal. | 19.3 gal | 25.5" x 17.125" x 13.75" |
Note: Usable capacity takes in consideration of the displacement rate of the can, bladder, and foam baffling
QSST FEATURES:
- Quick Service Surge Tank for fast pump service
- Provides protection against fuel slosh from standard fuel cell pump hangers
- Fits the Industry Standard 24 Bolt fill plate bolt pattern
- Gasoline, Ethanol (E85), and Methanol compatible
- Rollover flap protection
- Brushed or Brushless Pump Options
- Fuel Tank Vent with Rollover Protection
- Gaskets and Hardware Included
- Optional Remote Fuel Fill
- Optional Fuel Level Sensor
- Fuelab QSST Limited Lifetime Warranty!

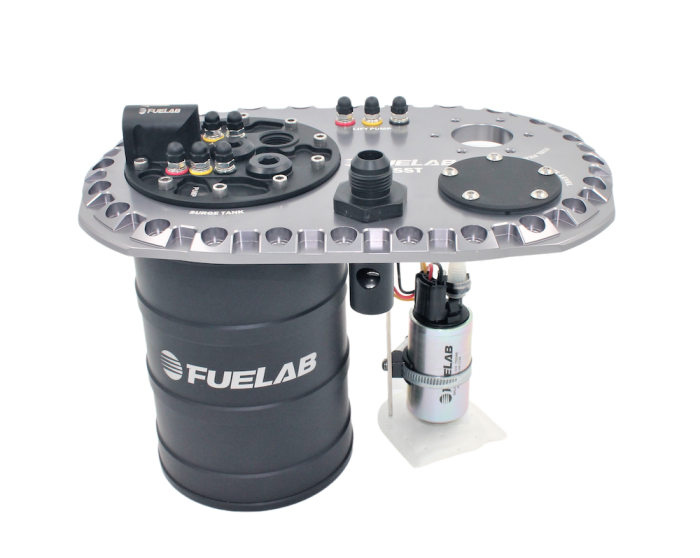

The QSST (Quick Service Surge Tank) is exactly that. You can service your Surge Tank Pumps in minutes. With only 10 bolts on top, you can pull the Surge Tank Pump Hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24-bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. This unit is compatible with Brushed and Brushless pumps for both the Lift Pump and the Surge Tank Pump(s), or a combination of the two using the same Base Plate. The base plate comes standard in two enticing anodized colors, Titanium and Gold.
