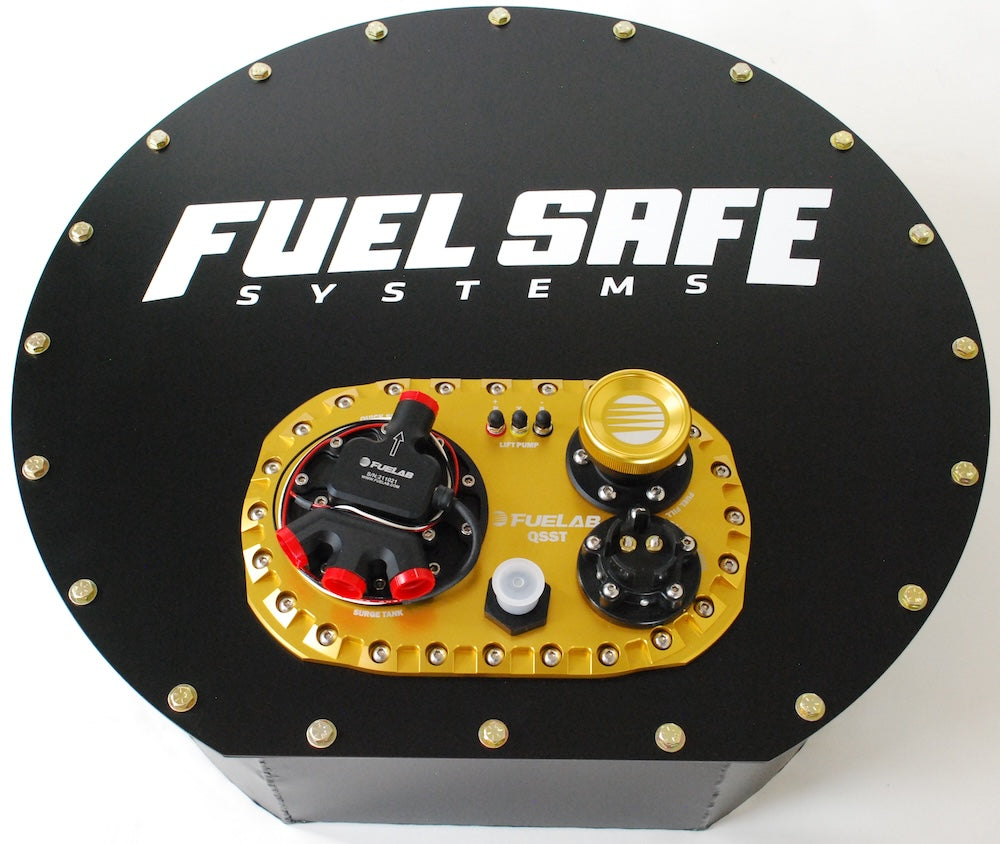

Spare Tire QSST Enduro Cell® - 12 Gallon, SA132-ED-QSST
Description
| Part No. | Capacity | Usable Capacity | Dims |
| SA130-ED-QSST | 10 gal | 9.4 gal |
22" x 20.5" x 8.5" |
| SA132-ED-QSST | 12 gal | 11.28 gal | 22" x 20.5" x 10.2" |
Note: Usable capacity takes in consideration of the displacement rate of the can, bladder, and foam baffling
QSST FEATURES:
- Quick Service Surge Tank for fast pump service
- Provides protection against fuel slosh from standard fuel cell pump hangers
- Fits the Industry Standard 24 Bolt fill plate bolt pattern
- Gasoline, Ethanol (E85), and Methanol compatible
- Rollover flap protection
- Brushed or Brushless Pump Options
- Fuel Tank Vent with Rollover Protection
- Gaskets and Hardware Included
- Optional Remote Fuel Fill
- Optional Fuel Level Sensor
- Fuelab QSST Limited Lifetime Warranty!

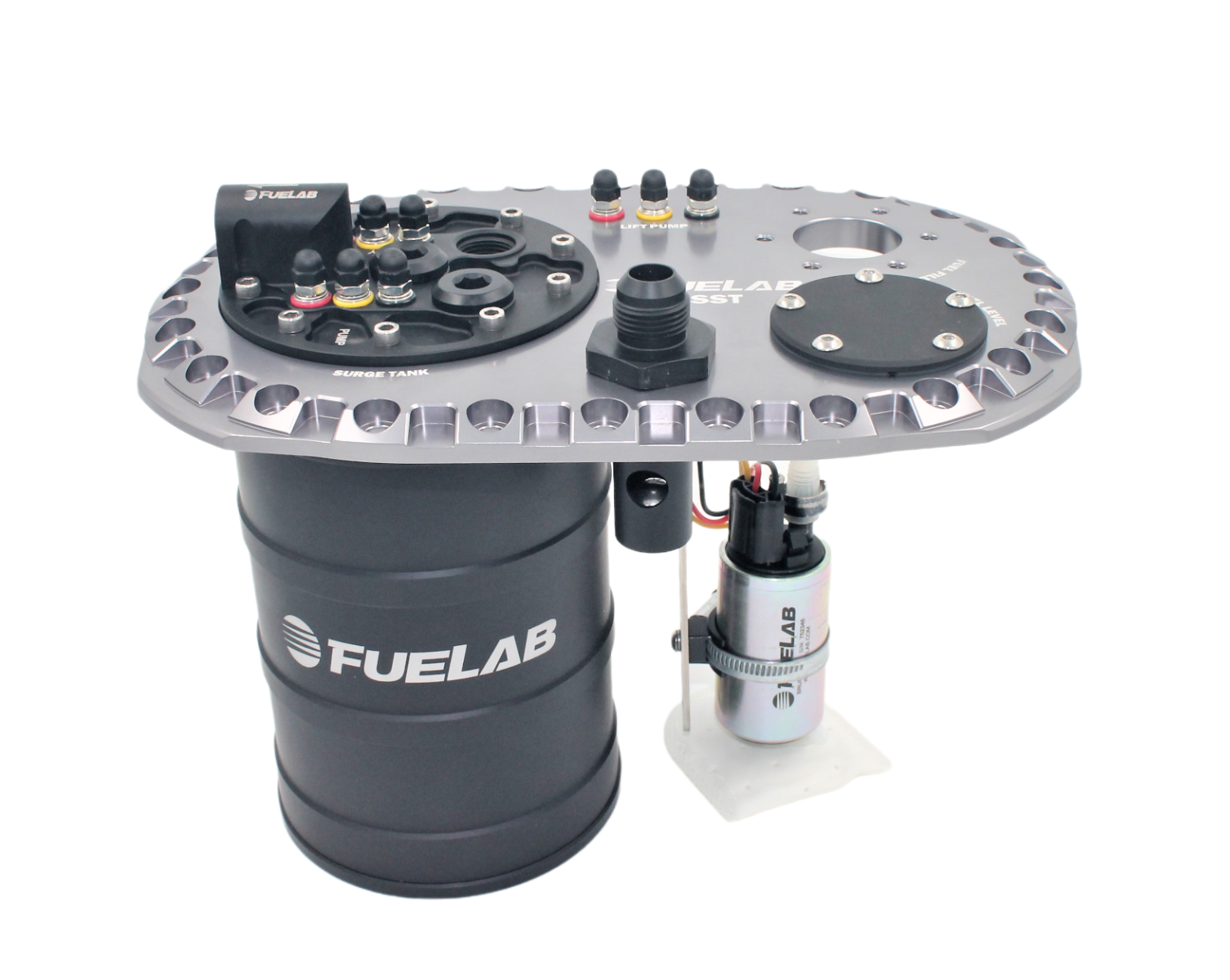

The QSST (Quick Service Surge Tank) is exactly that. You can service your Surge Tank Pumps in minutes. With only 10 bolts on top, you can pull the Surge Tank Pump Hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24-bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. This unit is compatible with Brushed and Brushless pumps for both the Lift Pump and the Surge Tank Pump(s), or a combination of the two using the same Base Plate. The base plate comes standard in two enticing anodized colors, Titanium and Gold.
Additional Product Imagery
Direct Fill Neck with cap, 63711
Remote Filler Neck with a Remote Mount Filler Flange and a Cap, 63702
Remote Fuel Fill Kit with Cap and 3 Feet of Clear Fill Hose, 63712
49442 Fuelab 340 LPH Pump (img a)
49442 Fuelab 340 LPH Pump (img b)
49442 Fuelab 340 LPH Pump (img c)
49442 Fuelab 340 LPH Pump (img d)
72002 Controller for Fuelab 500 LPH Brushless Pump
49614 Fuelab 500 LPH Brushless Pump with Controller
Single Fuelab H/E Series 1300 HP SAE Plate Mount Brushless Screw Pump, 500 LPH, Speed Controllable, 93903
Single Fuelab H/E Series 1500 HP SAE Plate Mount Brushless Screw Pump, 600 LPH, Speed Controllable, 93904
49442 Fuelab 340 LPH Pump (img a)
72002 Controller for Fuelab 500 LPH Brushless Pump
49614 Fuelab 500 LPH Brushless Pump with Controller
Fuel Cell Vent Kit that includes a 10AN Pushlock Fitting, 5/8 ID Fuel Vapor Hose, 5/8 Barb Connector, Vent Filter, and Hose Clamps, 63713
