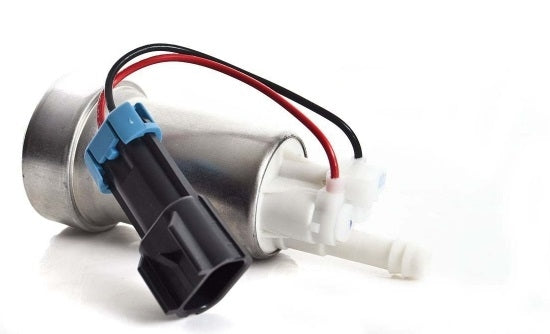

Walbro High Performance In-Tank Fuel Pump, FP-F90000274

Name	Walbro 450LPH Fuel Pump High Pressure TIA450-2 F90000274 (Universal E85 Ethanol) TI Automotive
FUEL PUMP TYPE	Electric High Performance E85 Compatible
FUEL PUMP VOLTAGE	13.5V (14.1 amps) in gasoline
OE REPLCEMENT FUEL PUMP	Universal Fitment.

Dual channel turbine design for maximum efficiency under high pressure and high temperature applications Made in USA by TI Automotive (parent company of Walbro). All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications. The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 750hp. Designed for E85 or Gasoline applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps. SPECIFICATIONS 465 lph @ 40 psi and 13.5V (14.1 amps) in gasoline Outlet diameter: 10mm (3/8") Diameter (upper body) 39mm Diameter (lower body) 50mm.
