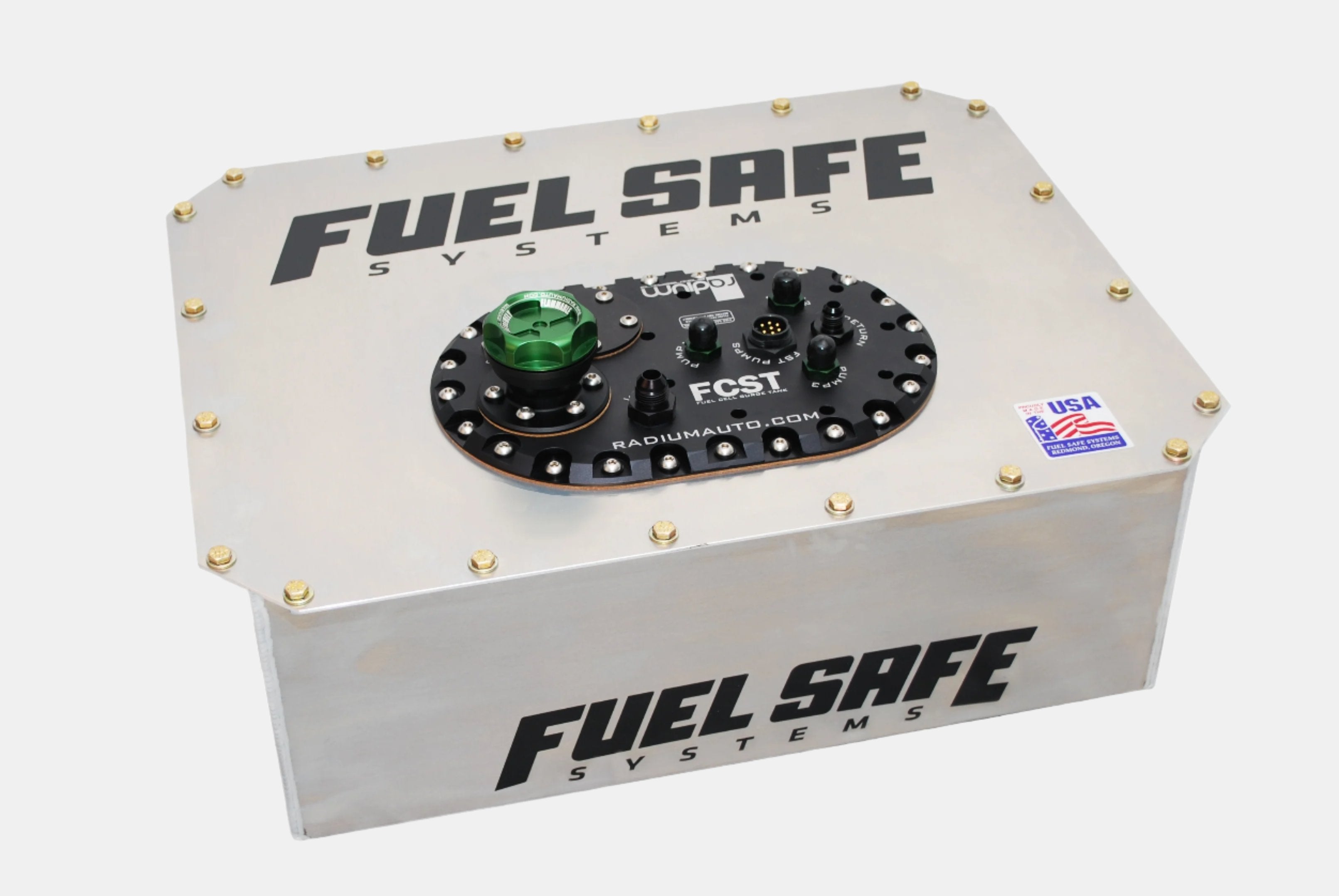

Race Safe® FCST-X Fuel Cells

Radium Engineering + Fuel Safe Systems

The FCST uses the tried and true Radium Engineering fuel surge tank system preferred by professional motorsports teams worldwide. The optimized canister supports 1, 2, or 3 internally mounted surge tank pumps capable of up to 1,350LPH @ 43psi. The fuel pumps inside the surge tank provide the primary fueling to the engine. The "lift pump" mounts next to the surge tank canister and keeps the chamber filled.

The volume of fuel inside the surge tank acts as a buffer always keeping the surge tank pump(s) supplied with fuel. This volume is also maintained by the "return" from the fuel pressure regulator. Excess fuel in the integrated surge tank bleeds out into the fuel cell without the need of expensive hoses and fittings. All of this is done inside the fuel cell with the FCST.
